How to set up a zone for tracker - GeoFamily Controller App

The controller app user sets up a zone to receive an alarm when the counterpart tracker user arrives in or leaves the zone area. Depending on the type of zone you want to set up, it can be set as 'Home Zone', 'Care Zone', or 'Danger Zone'.

If you select the 'Geofence Configuration' menu in the drawer menu, a map screen will appear allowing you to add, change and delete zones. ('ZONE' appears in the top left corner of the map screen) If the map screen is not for the counterpart tracker user you want, touch the tracker name at the toolbar at the top of the screen to select the desired tracker user.

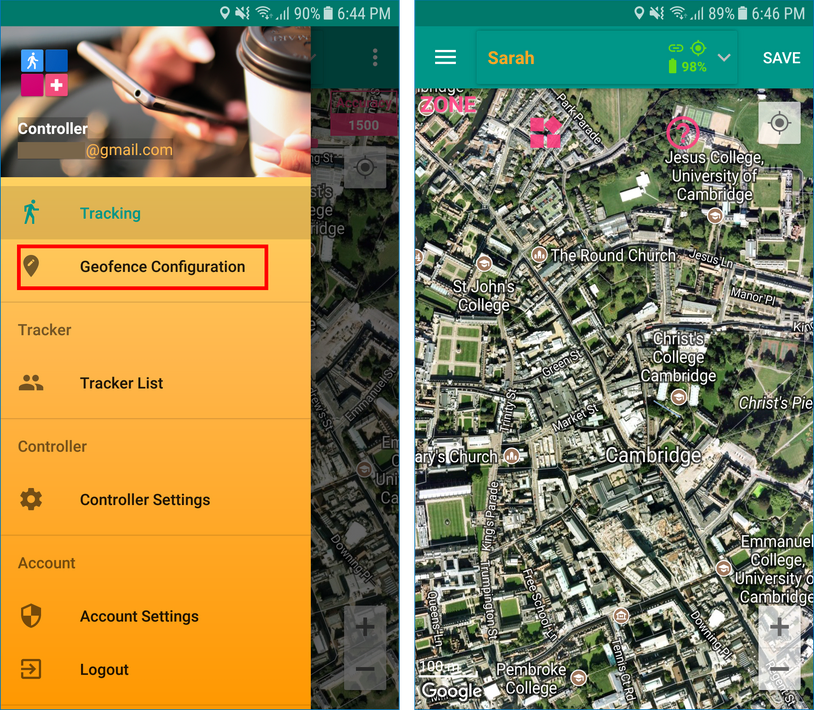

GeoFamily Controller App User Selects Geofence Menu - Screen | GPS Tracking App

1. How to add a zone

(1) Touch and hold on to the map where you want to add a zone. A window to edit the zone will appear.

(2) Enter the name of the zone, select the type and radius, and click the 'ADD' button to select the setting.

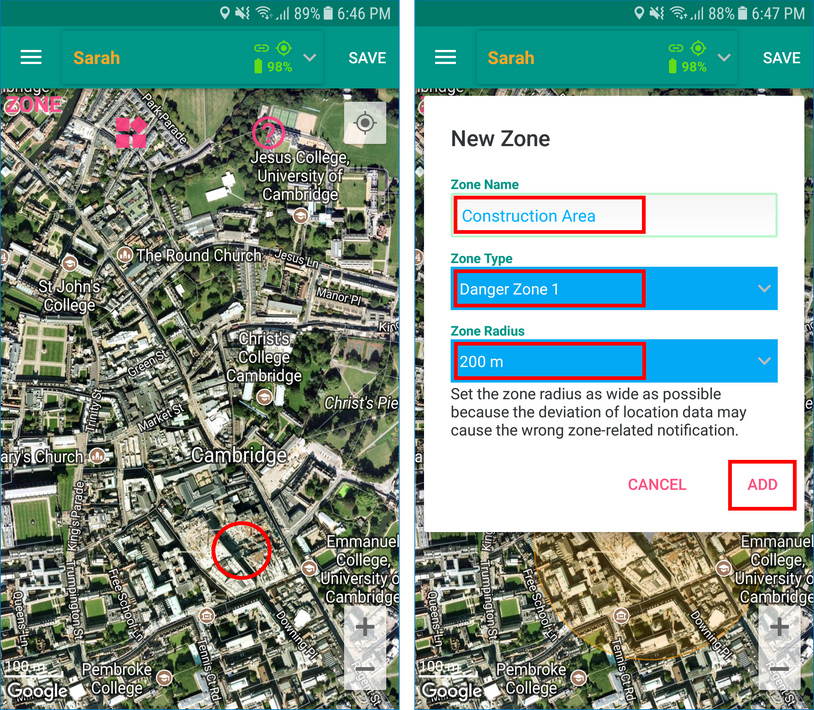

GeoFamily Controller App User Touches A Map Location To Add - Screen | GPS Tracking App

(3) Click 'SAVE' on the upper right of the map screen to save the settings.

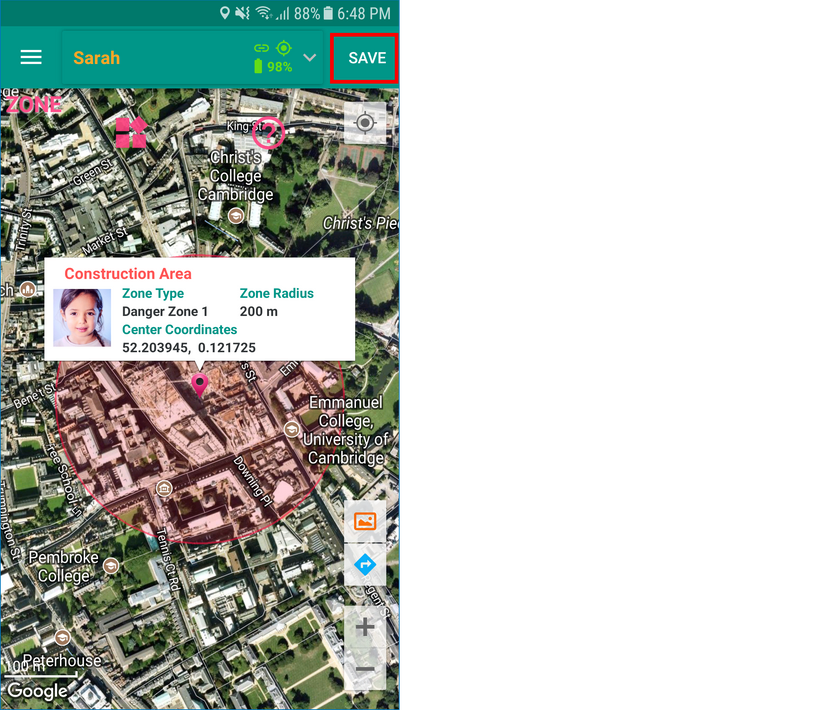

GeoFamily Controller App User Saves Added Zone - Screen | GPS Tracking App

2. How to change the settings of a zone

(1) Touch the marker in the center of the zone shown on the map, to get the information window. Touch the information window to get a window to edit for the zone.

(2) Edit the name and zone radius of the zone and click the 'CHANGE' button to select the edit contents.

(3) Click 'SAVE' in the top right corner of the map screen to save your edits.

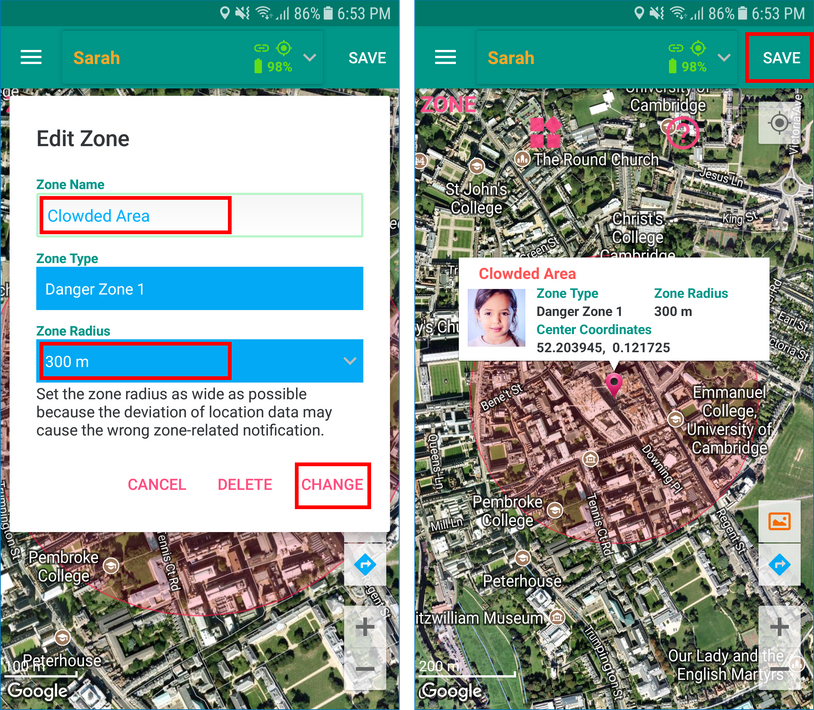

GeoFamily Controller App User Saves Edited Zone - Screen | GPS Tracking App

3. How to move the position of a zone

(1) Touch and hold the marker in the center of the zone on the map, and move the zone marker to the desired position while dragging.

(2) Click 'SAVE' on the top right of the map screen to save the location move.

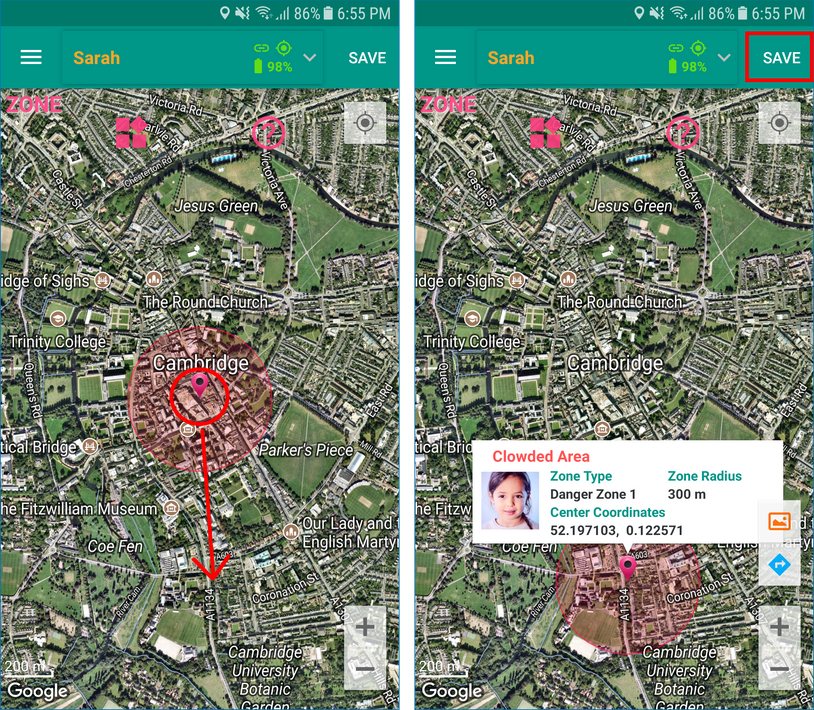

GeoFamily Controller App User Saves Moved Zone - Screen | GPS Tracking App

4. How to delete a zone

(1) Touch the markers in the center of the zone shown on the map, to get the information window. Touch the information window to get a window for the zone.

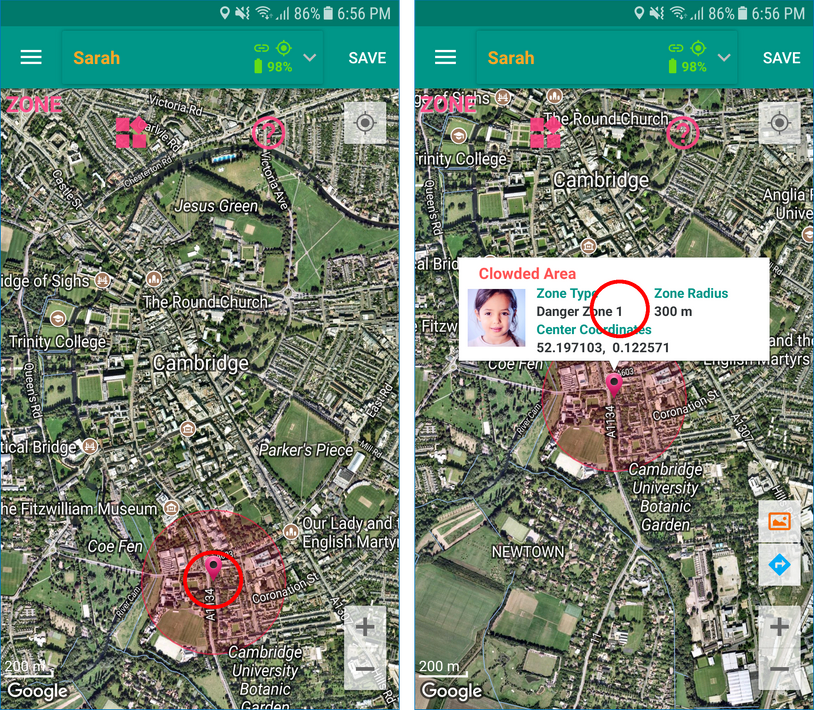

GeoFamily Controller App User Touched A Zone To Delete - Screen | GPS Tracking App

(2) Click the 'DELETE' button to delete the zone.

(3) Click 'SAVE' in the top right corner of the map screen to save your delete.

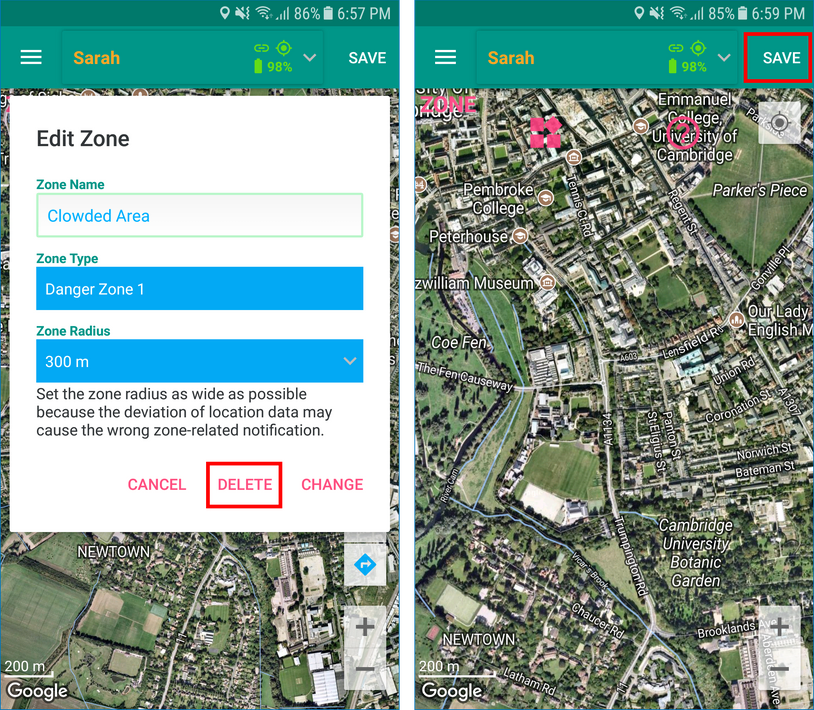

GeoFamily Controller App User Saves Deleted Zone - Screen | GPS Tracking App
